Sheet Metal Design Services

At CAD ZONE, our expertise is in providing complete services for sheet metal design - product design, development, and optimization. We use specialize CAD tools, CAE tools and a systematic approach to design sheet metal parts which enables us to provide services that meet customer requirements.

We have certified engineers with abundant certifications which allows us to deliver high-quality services to metal fabricators and manufacturers. Following are some of the Sheet metal product design services we offer -

  • Recognising crucial design parameters and specifications
  • 2D and 3D solid sheet metal components design followed by Assembly, Drafting and FEA.
  • Converting 2D Drawings into 3D sheet metal models while keeping in mind the exact K-factor, thickness, and bend radius
  • Generation of accurate fabrication drawings, 3D sheet metal models, manufacturing drawings, 2D flat drawings and assembly drawings.
  • Developing precise sheet metal forming designs with the exact form height to thickness ratio, specified critical dimensions, bend radius, bend relief, embosses and offsets for easier manufacturing processes
  • Cost and Estimation of Sheet Metal Products.
  • Welding details of sheet metal design for specific sheet metal parts on drawings and models
  • Metal furniture products design and sheet metal part design.
  • Sheet metal cutting design and fire protection equipment design.

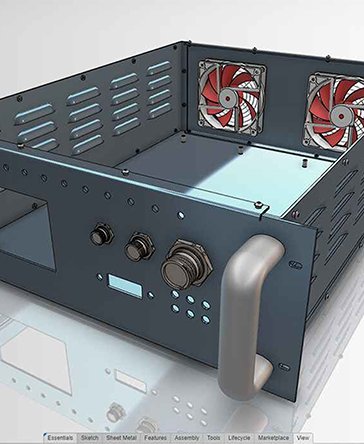

Thumb Thumb

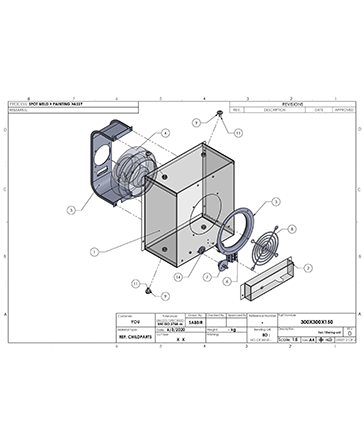

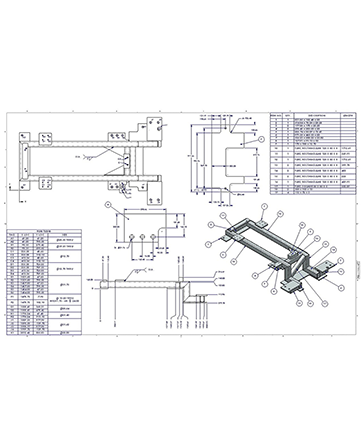

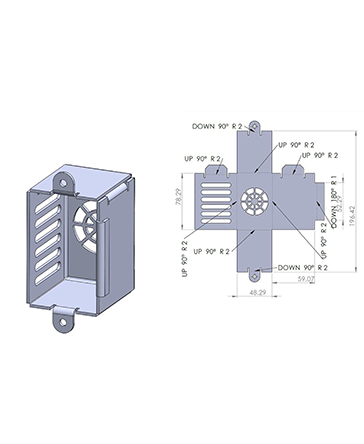

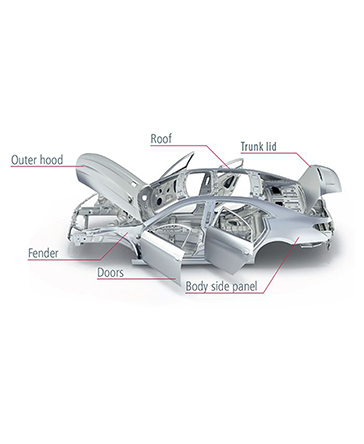

Related Projects

Thumb Thumb Thumb Thumb
Partner with us to explore the power of good design experience that drives efficient fabrication,
reduces costs and helps you bring your product to markets faster.
